H5P - Portable Interactive Content in Drupal

H5PH5P is an open source platform-independent authoring and display system for interactive content. Presentations, quizzes, and other interactive content can be created and displayed using building blocks known as H5P content types (different from Drupal content types). Once a piece of content is created it's easily exported to another H5P system. The development environment is open and well documented, allowing the creation of custom H5P content types.

H5P attributes include:

  • Available in Drupal 7, WordPress, and Moodle
  • Open Source
  • Content is exportable to any other H5P system
  • Uses JavaScript and HTML 5
  • Results tracking for content types such as quizzes
  • xAPI (Tin Can) integration
  • Drupal 7 hook system integration
  • Drupal development environment

Unfortunately there is no Drupal 8 version yet.

There are a variety of H5P content types, including containers such as accordions and sliders which can nest other content types. Some examples are:

  • Arithmetic Quiz
  • Course Presentation
  • Dialog Cards
  • Drag the Words
  • Fill in the Blanks
  • Timeline
  • Interactive Video

The complete list is at https://h5p.org/content-types-and-applications

H5P defines a file packaging format named the ".h5p specification", or simply, H5P file. An H5P file is a zip archive bundling HTML, JSON, JavaScript, and media files. It can contain one or more of a content type, content export, API implementation, application, or JavaScript library.

Drupal Integration

H5P is installed in Drupal in two steps.

  1. Drupal H5P module
    The H5P module is installed using the standard module installation process. It handles the Drupal integration.
  2. H5P Content Types and support files
    H5P content types and the files to support them are installed into a H5P Library manager provided by the H5P module. An H5P archive file of the content types and other support libraries is downloaded from the H5P site and uploaded into the Drupal H5P library.

H5P Content Library

Screenshot of H5P Content Library in Drupal

Content Creation

The Drupal integration contains a H5P node type named, “Interactive content”. When a H5P node is created there is a selector for the H5P content type. For example, quiz, presentation, or dialog card. When a H5P content type is selected the editor for the content type is loaded interactively. The author then creates the desired content.

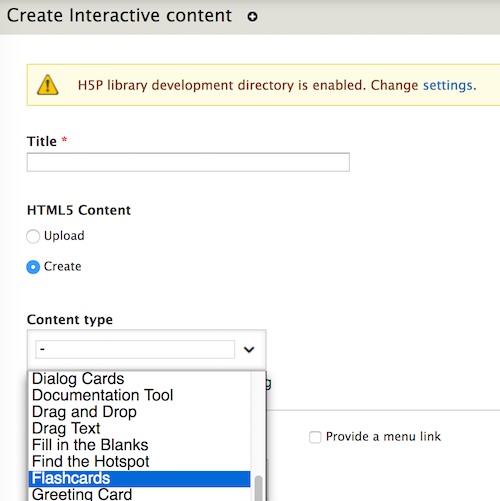

H5P Content Selector

Screenshot of H5P content type selector

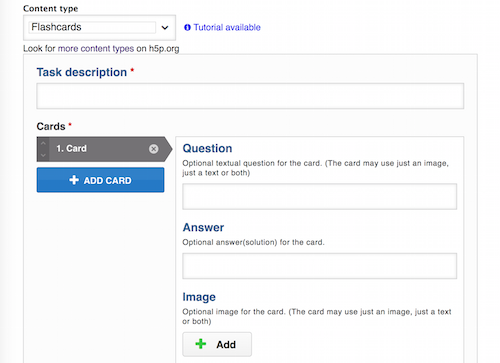

H5P Flashcards content editor

Screenshot of editor for H5P Flashcards content type

Once saved the content is presented when the node is viewed.

H5P Development

The H5P project provides a Drupal development environment (including a developer mode), online documentation, and a forum.

The various specifications and basics for getting started are well documented, and include a “hello world” example. H5P at its heart is JavaScript with a PHP wrapper for integrating with a website. Someone's ability to learn the framework will depend on their comfort with JavaScript.

Coding the editor component that creates and edits the content type typically requires as much work as coding the display for the content type. Custom editor widgets can be written. Existing H5P editor widgets can also be used though they are not documented.

The H5P Drupal hooks provide a clean method of adding CSS stylesheets and modifying H5P behaviour without modifying the base H5P code. Some tasks are complicated by the asynchronous nature of JavaScript loading and the use of iFrames.

Pros and Cons

H5P is continuously changing and improving. These pros and cons are a snapshot of my experience as of May 2017.

Pros:

  • Plug and play interactive content
  • Easy to share content
  • Option for turning off content sharing feature
  • Large variety of content types
  • Open source
  • The H5P team is approachable
  • There is a good content development environment for Drupal
  • The content creators I worked with were able to quickly and easily generate content using H5P
  • Drupal hooks available

Cons:

  • Documentation on some content types is lacking
  • Trial and error is often required to figure out options for some of the sophisticated content types
  • Though some of the content type editors are excellent, some are obtuse or confusing
  • There is no Drupal 8 version
  • Content creators are endlessly creative, you will have to deal with content types being “close but not exactly what I want”
  • There isn't a lot of good guidance on developer workflow if you want to contribute back to the project
  • Staff focused on content creation will probably have favoured tools -- for example, Articulate Storyline -- and push back on an unknown tool such as H5P
